The SELEE CS-W filter plate is suitable for long-term immersion in high-temperature aluminum water and has good applications in various aluminum alloy casting processes. Compared with traditional phosphate bonded filter plates, it has significantly improved performance. The specific advantages are as follows:
1) Improved resistance to melt corrosion
2) Improved thermal mechanical performance
3) Improved thermal shock resistance
4) During use, there is no lateral compression or breakage
5) Phosphorus free filter plate, more environmentally friendly, without the release of PH₃

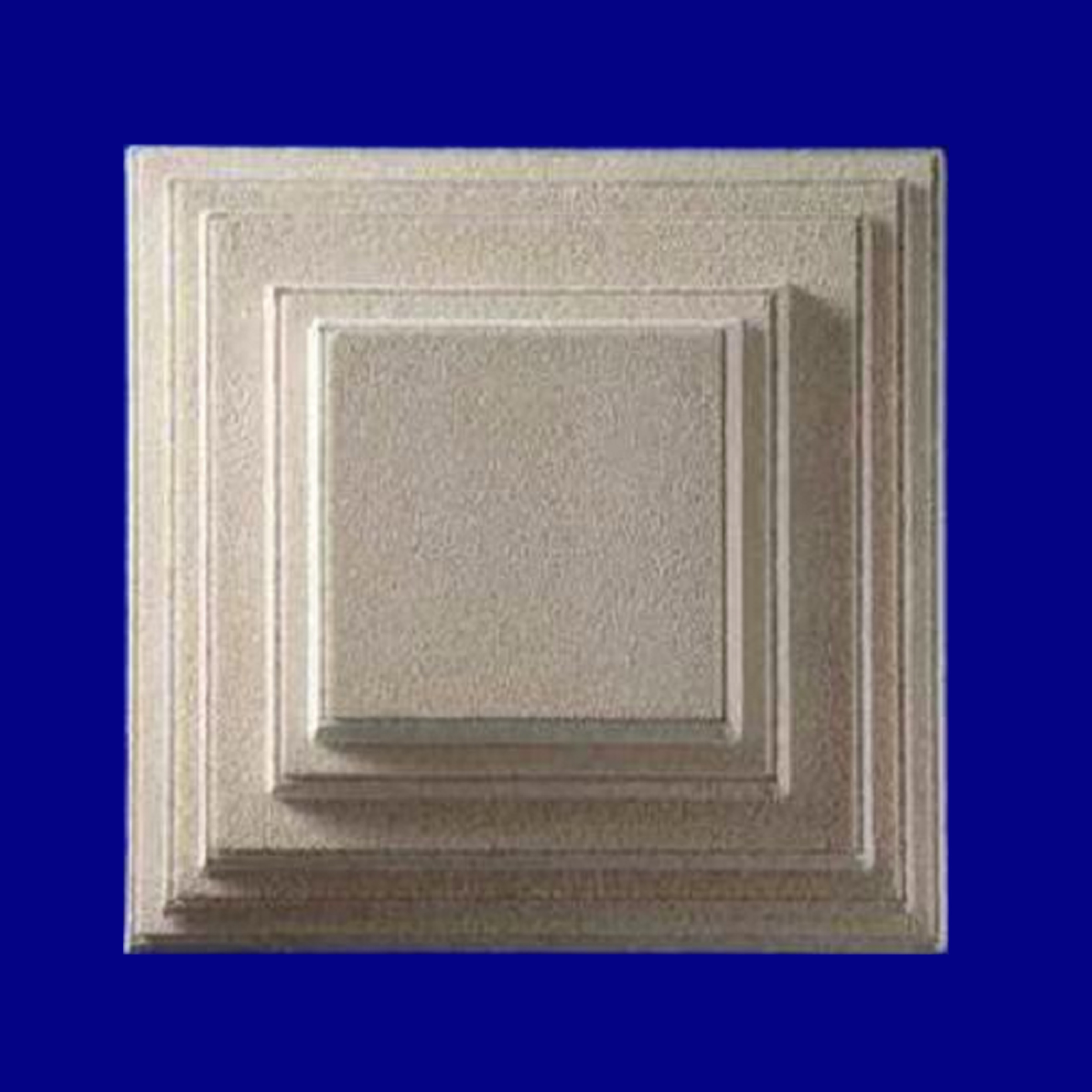

SELEE ® CS-W filter plate
SELEE CS-W Filter plate structure

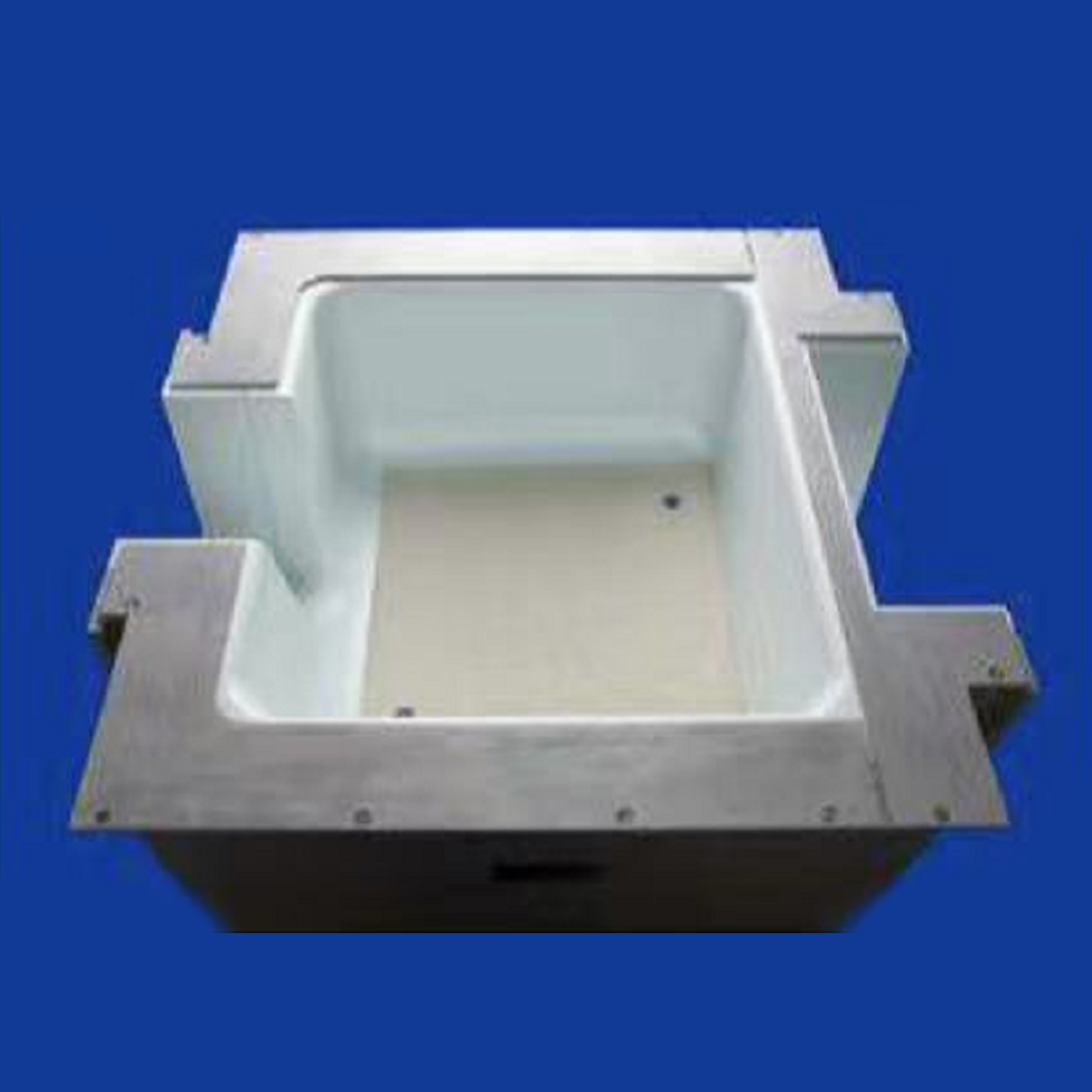

SELEE Provide complete standard filter boxes, as well as turnkey customization of filter boxes and preheating systems
Filter board application information
Filter plate size: The following filter plate size information is for reference only (excluding tolerances). The optimal size information of the filter plate depends on the purity of the melt, melt flow rate, and casting time.
| SELEE产品编码 | Nominal filter size mm | Effective filtration area m㎡ | Suggested flow rate range Kg/min |
| CSW09YYSE | 229 x 229 x 50 | 38,950 | 27 - 82 |
| CSW12YYSE | 305 x 305 x 50 | 74,834 | 53 - 158 |
| CSW15YYSE | 381 x 381 x 50 | 122,331 | 86 - 258 |
| CSW17YYSE | 432 x 432 x 50 | 160,447 | 113 - 338 |
| CSW20YYSE | 508 x 508 x 50 | 227,298 | 160 - 479 |
| CSW23YYSE | 584 x 584 x 50 | 305,763 | 215 - 645 |
| CSW26YYSE | 660x 660 x 50 | 395,840 | 278 - 835 |
*YY=过滤板孔径等级
